2L-6-cavity automatic PET blow molding machine

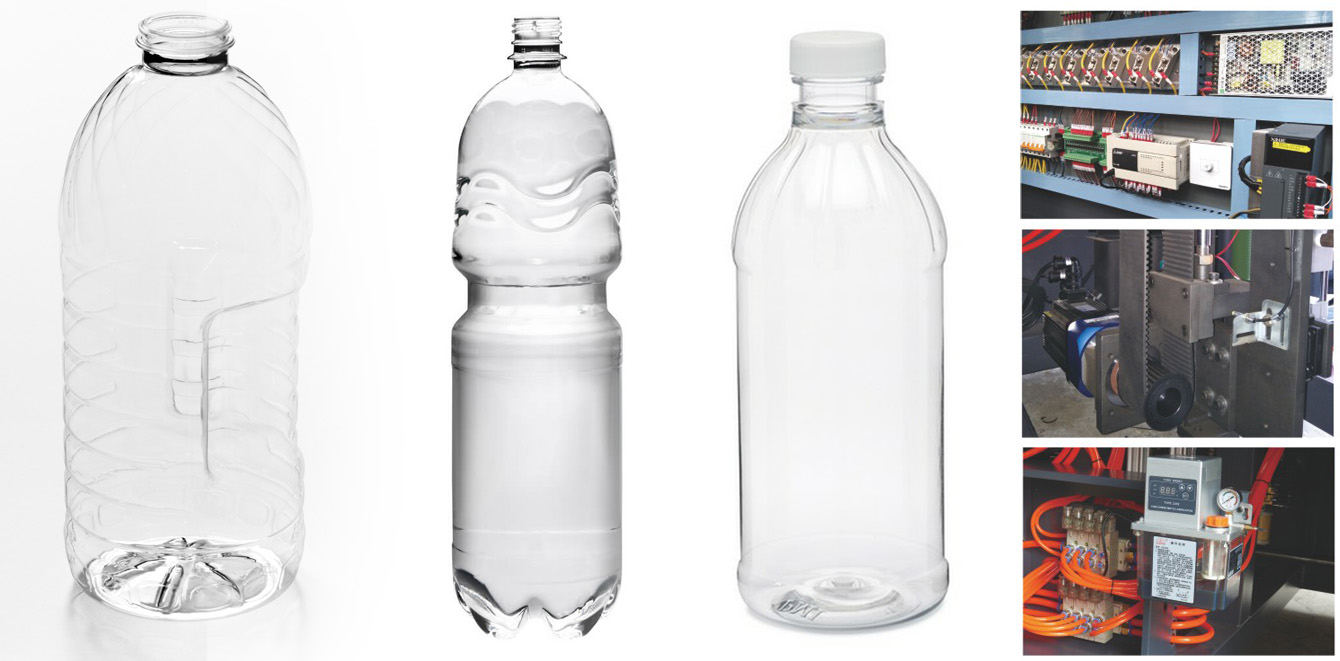

Suitable for blowing mineral water bottles, cosmetic bottles, etc. of any shape with PET as raw material
Our company's stable two-step down blowing stretch automatic bottle blowing equipment, from one out of two cavities to one out of six cavities, the speed of each cavity is 1000 bottles/hour (500ml plastic bottles), and the maximum blowing capacity is 2L Plastic bottles, suitable for blowing carbonated beverage bottles, carbonated beverage bottles, purified water bottles, mineral water bottles, juice beverage bottles,
Cosmetic bottles, large diameter bottles, high temperature resistant bottles and other packaging containers
The production process is fully automated, which has the advantages of low investment, high efficiency, convenient operation, simple maintenance and safety. Fully automatic PET blow molding machine
Servo transmission system, high positioning accuracy, fast speed, stable reliability Strong mold force;
TYPE | ITEM | BG-2000-6 |
Product parameters | Production capacity | 6000-6500pcs/hr |
Max.volume | 2.0L | |
Max.neck size | 38mm | |
Max.diameter | 110mm | |
Max.height | 320mm | |
NO.of cavity | 6 | |
Power specifications | NO.of lamp | 48pcs |
Max.heating power | 96kw | |
Total machine power | 96kw | |
Actual power consumption | 20kw | |
Air pressure specifications | Working pressure | 0.7-0.9Map |
Low pressure gas consumption | 2500ltr/min | |
Blow bottle pressure | 3.5Mpa | |
Hig pressure gas consumption | 6500ltr/min | |
Cooling water specifications | Chiller pressure | 0.3-0.5Mpa |
Temperature range | 10℃ | |
Consumption | 50L/Min | |
Appearance specifications | Machine size | 5.5*2.1*2.2cm |
