Fully automatic 20L oil bottle PET blow molding machine-

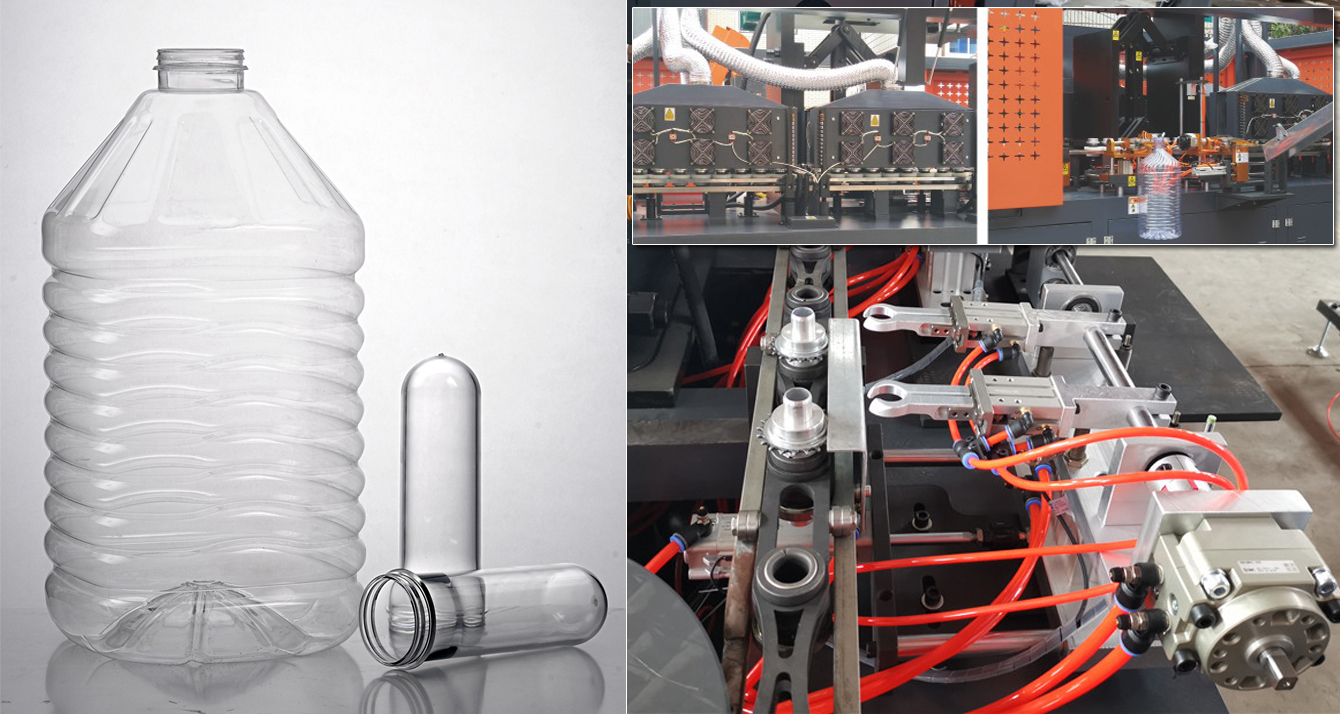

20L-1 large barrel blowing machine is suitable for blowing production of PET large barrels, oil barrels and disposable water barrels.
20L-1 large barrel blowing machine is suitable for blowing production of PET large barrels, oil barrels and disposable water barrels. The series of blowing equipment are automatically operated, with high output and high speed. This series of PET bottle blowing machines can also blow other large-capacity plastic packaging containers of more than 2L, such as carbonated beverage bottles, medium and low temperature filling juice beverage bottles, mineral water bottles, pesticide bottles and other plastic bottles.
| TYPE | ITEM | BG-20L |
| Product parameters | Maximum capacity | 20L |
| Number of cavities | 1Cavites | |
| Yield | 300-600pcs/hr | |
| Maximum caliber | 65mm | |
| The maximum diameter | 360mm | |
| maximum height | 540mm | |
| Power specifications | Number of lamps | 39pcs |
| Maximum heating power | 100kw | |
| Total power of the machine | 120kw | |
| Actual power consumption | 18kw | |
| Air pressure specifications | Working pressure | 0.7-0.9mpa |
| Low voltage power consumption | 2600ltr/min | |
| Blowing pressure | 2.5-0.5kg/c㎡ | |
| High voltage power consumption | 4000ltr/min | |
| Cooling water specifications | Working pressure | 0.3-0.5mpa |
| Humidity range | 10.c | |
| consumption | 50L/min | |
| Appearance specifications | Machine size | 4.1*1.8*3.0m |
| Machine weight | 6.5T |
20L-1 large barrel blow molding machine features:
1. The PET bottle blowing machine is highly automated;
2. Highly efficient;
3. Stable preform heating system and efficient air blowing system;
4. High output, high-speed flow production;
vat blow molding machine
5. During the blowing process of the large barrel blowing equipment, the bottle body is free of pollution;
6. High energy saving;
7. The PET bottle blowing machinery is easy to maintain, safe to operate, and the noise of the blowing equipment is very low.
